Electrical Insulation Silicone Potting Compound For Power Modules And Inverters
1
2
3
4
Brand Name :Hanast
Model Number :HN-8808A/B
Certification :ROHS
Place of Origin :Guangdong, China
MOQ :1KG
Price :Negotiable
Payment Terms :T/T、paypal
Supply Ability :50ton/month
Delivery Time :5-7days
Packaging Details :22kg/set (20kg A + 2kg B); 11kg/set (10kg A + 1kg B)
Pot Life (25°C) :40-60 minutes – Provides ample working time.
Viscosity (Mixed) :2000-2600 cP – Good flow for easy filling, yet resistant to spillage
Mix Ratio: 10:1 :A forgiving process window, less sensitive to ratio errors, easy to control.
Curing Profile :Cures at room temperature, no extra equipment needed – Simplifies the process.
Hardness (Shore A) :30-40 – Moderate elasticity, facilitates subsequent rework.
Contact Now

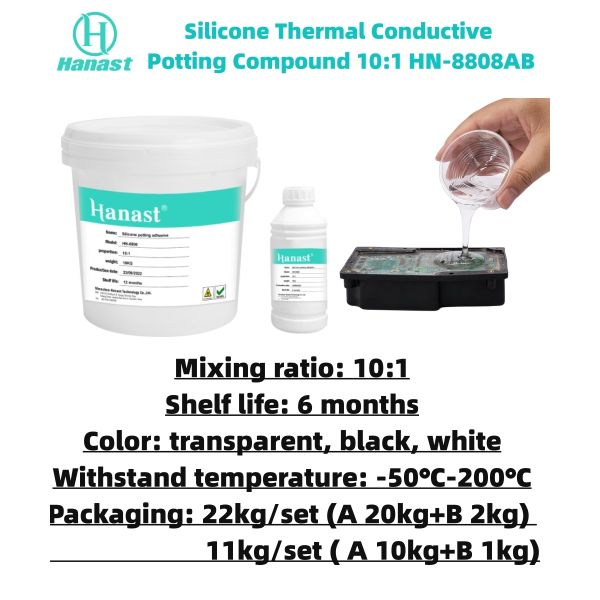

Electrical Insulation Silicone Potting Compound For Power Modules And Inverters
Product Overview for Silicone Potting Compound:
HN-8808, two parts, low viscosity potting compound that cures at room temperature to soft pliable rubber. 1. This potting silicone rubber has high moisture resistance and a wide temperature range of - 57°C to 250°C.
Key Performance Parameters for Silicone Potting Compound:
1. Pot Life (25°C): 40–60 minutes — Delivers an extended processing window for continuous assembly.
3. Mix Ratio: 10:1 — Lowers sensitivity to scaling errors, enhancing production yield.
4. Curing Profile: Ambient cure — Negates the need for ovens, reducing energy and capital costs.
5. Post-Cure Hardness: 30–40 Shore A — Yields moderate elasticity to optimize post-assembly reworkability.
Product Highlights for Silicone Potting Compound:
1.Condensed liquid silicone rubber does not use polar compounds as raw materials, and does not release by-products during cross-linking, and can maintain better electrical properties under harsh conditions.
3. It has adhesive force, has adhesion to metal aluminum, iron, acrylic, and PC plastic, and can improve waterproof sealing performance.
Application Areas for Silicone Potting Compound:
Widely used in sealing, electrical, potting, insulation, antifouling, waterproof, shockproof, coating, electronic appliances, and comprehensive household appliances.
Detailed Operating Guide (Manual Operation Focus) for Silicone Potting Compound:
1. Tool Prep: Ready two clean plastic/paper cups and a high-precision scale.
2. Tare Weighing: Place cup, tare, and add 100g of Part A. Tare again, then add 10g of Part B to eliminate container error.
3. "Figure-8" Mix: Use a flat-head stirrer. Mix slowly in a figure-8 pattern for 3 full minutes, scraping the sides and bottom thoroughly.
4. Simple Degassing: If lacking a vacuum, let sit for a few minutes. Pop surface bubbles with a toothpick or a light pass of hot air.
5. Corner Pour: Pour into a single corner to allow natural self-leveling. For tall parts, fill halfway, let gel slightly, then fill to the top to prevent trapped air.
Packaging & Storage for Silicone Potting Compound:
1. Standard Packaging: 22kg/set; 11kg/set. Smaller packages suit flexible production needs.
2. Storage Conditions: Store in a cool, dry place.
3. Shelf Life: 6 months in original, unopened containers from date of manufacture.
